Guitar Effects Pedal Power Supply | diago.co.uk

Electronic Power Adaptors
Pedal Specs	What You Need
Description	Examples	Adaptor Name	Product Code	Image	Adaptor Specs
Required Input: 18V DC (connector can be changed using a coloured adaptor, above) Current draw: 30mA Max	Some MXR, Dunlop, Diamond & Fulltone (check compatibility)	18V Adaptor	PS08		Input: 9V DC Centre Negative Output: 18V DC Centre Negative, 30mA Max
Required Input: 9V DC (connector can be changed using a coloured adaptor, above) Current Draw: 110mA Max Can be powered alone without problems Noisy when daisy-chained with other pedals.	Line6 Tonecore series, and some other digital pedals (check compatibility)	Isolator Adaptor	PS09		Input: 9V DC Centre Negative Output: 9V DC Centre Negative, 110mA Max Isolation: >lkV

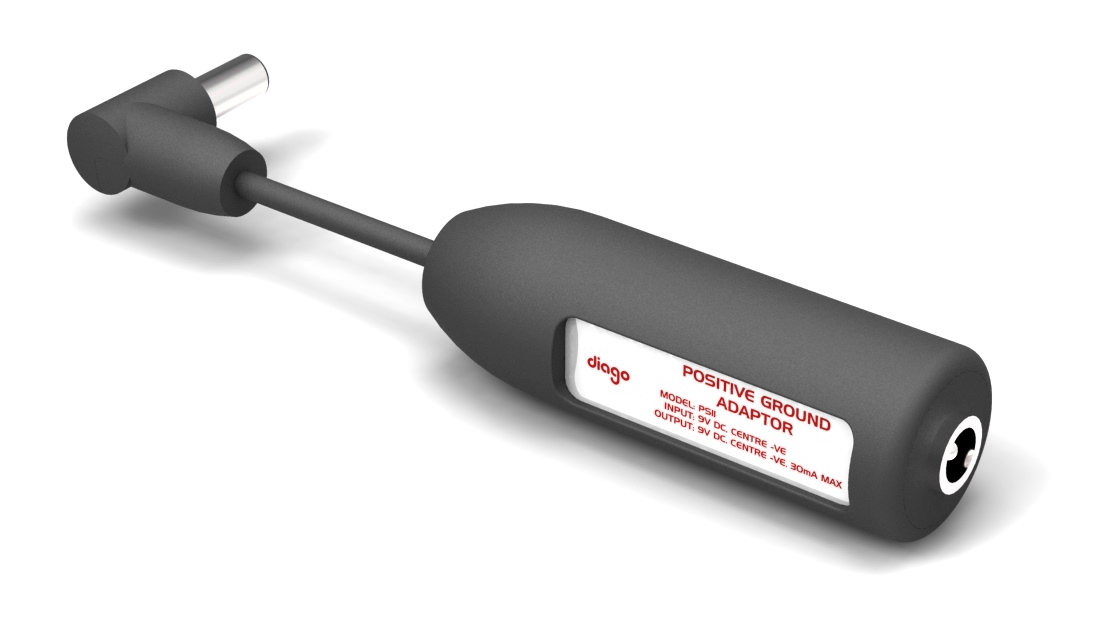

Required Input: 9V DC (connector can be changed using a coloured adaptor, above) Current Draw: 30mA Max Ground Connection: Positive (and is going to be powered alongside normal negative ground pedals)	Many germanium pedals (check compatibility)	Positive Ground Adaptor	PS11		Input: 9V DC Centre Negative Output: 9V DC Centre Negative, 30mA Max

Coloured Plug Adaptors
Pedal Specs				What You Need
Plug Shape	Size	Polarity	Example Pedals	Adaptor Needed	Product Code	Image	What it does

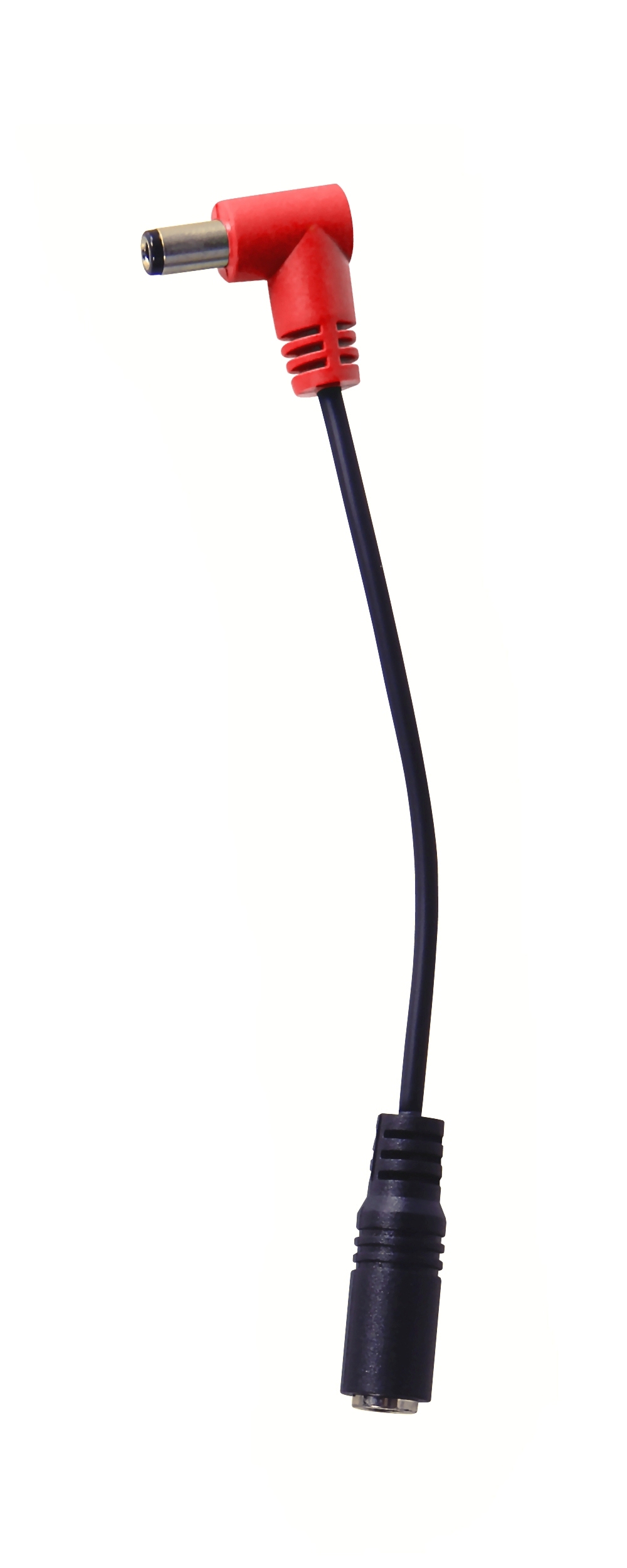

Barrel	2.1mm	Centre Positive	Some older Dunlop pedals Some Fulltone pedals Yamaha keyboards Samplers Drum Machines & many others (check compatibility)	Red Adaptor	PS05		Reverses polarity to a centre +ve, 2.1mm barrel plug Buy as many as you need, one for each pedal Just plugs on to your existing daisy chain cable

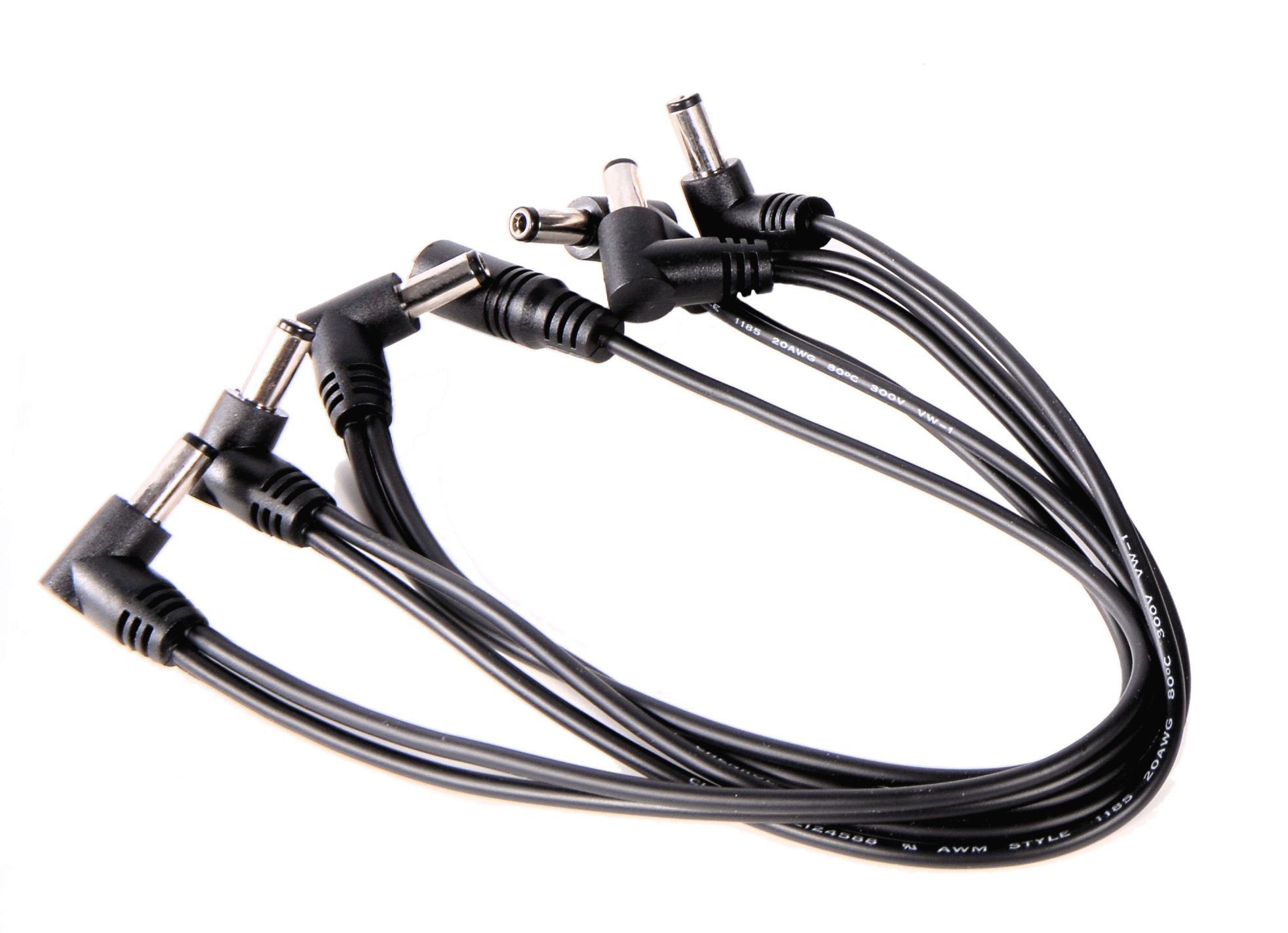

		Centre Negative	Pedals with a standard Boss-type connection	Deluxe Daisychain (One supplied with every Powerstation)	PS02		6 x right angled 2.1mm barrel plugs (Boss type) 30cm / 12" of cable between each plug Each chain that you add lets you power 5 more pedals Connect multiple daisy chain cables together to power as many pedals as you need

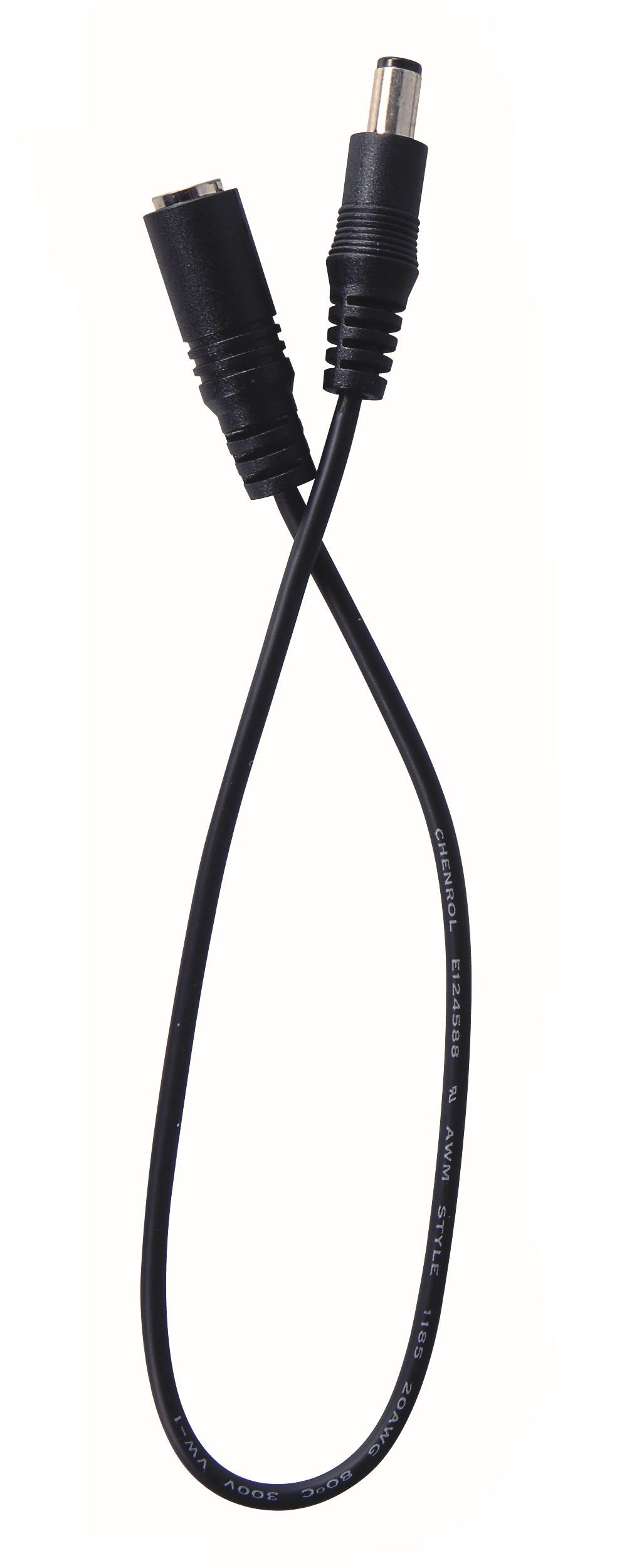

		Centre Negative	Pedals with a standard Boss-type connection	Black Adaptor (Extension)	PS07		Use it to extend your daisy chain, to get around large pedals or where pedals are far apart Extension cable with 2.1mm barrel plug and socket 30cm / 12" long Buy as many as you need Just plugs on to your existing daisy chain cable Other adaptors can be joined on the end where necessary
	2.5mm	Centre Positive	Line 6 Stompbox Modelers (DL4, DM4, FM4 & MM4)	Green Adaptor	PS03		Reverses polarity to a centre +ve, 2.5mm barrel plug Buy as many as you need, one for each pedal Just plugs on to your existing daisy chain cable
	2.5mm	Centre Negative	n/a

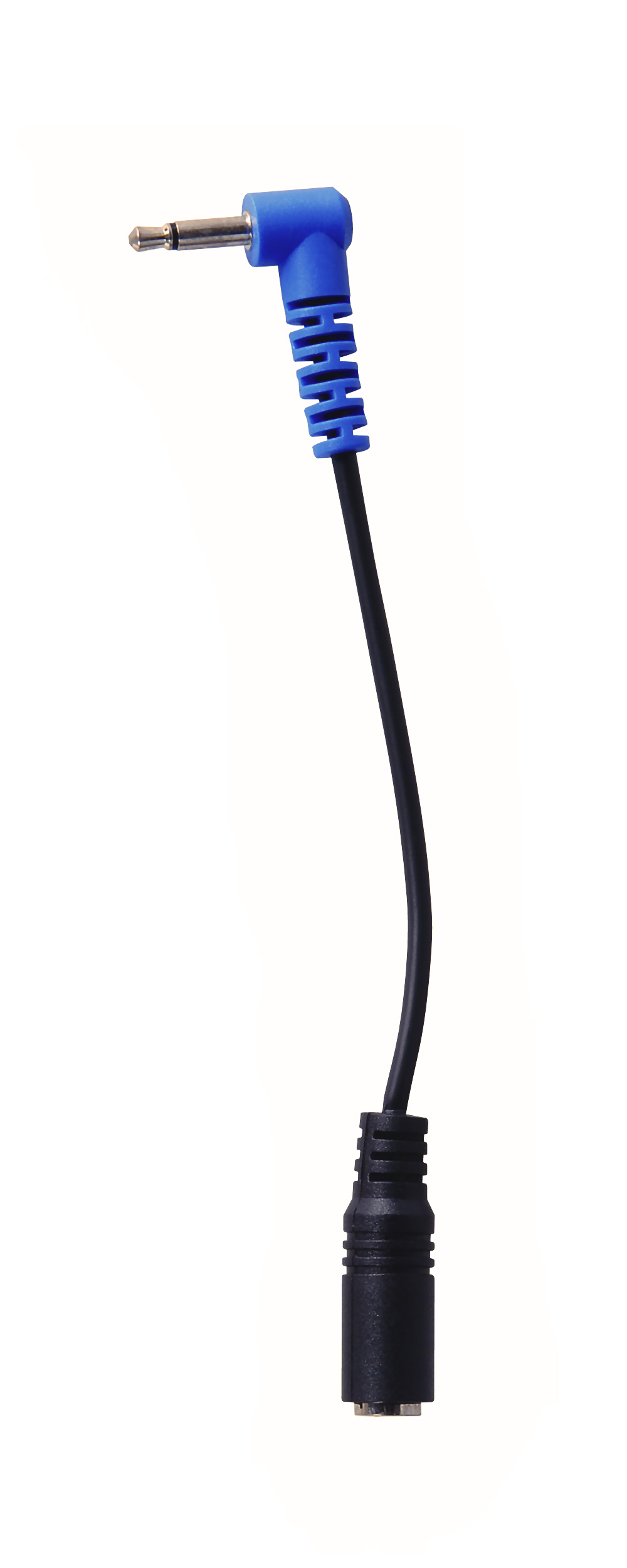

Mini-Jack	3.5mm	Positive Tip	Some Electro Harmonix ProCo (RAT etc.) Older DOD Older Jacques & others (check compatibility)	Blue Adaptor	PS04		Reverses polarity to a positive tip, 3.5mm (1/8") mini jack plug Buy as many as you need, one for each pedal Just plugs on to your existing daisy chain cable
Mini-Jack	3.5mm	Negative Tip	n/a

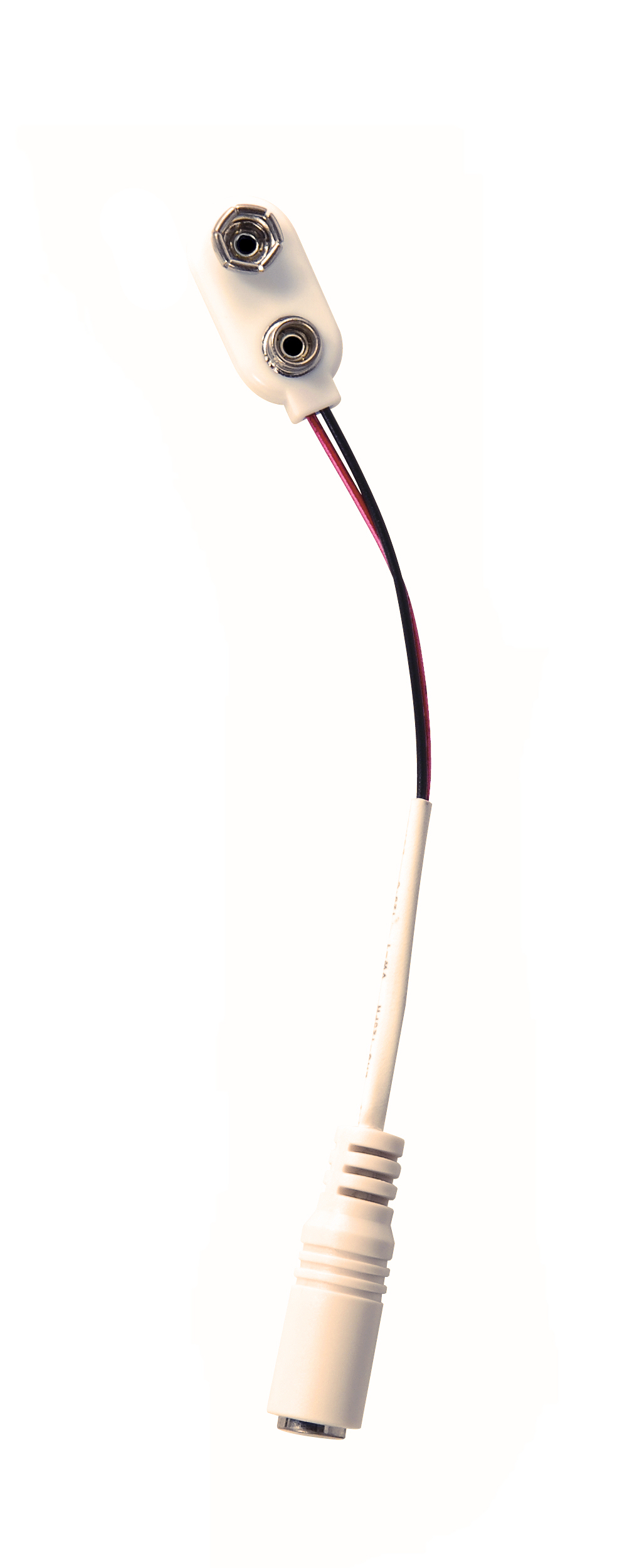

9V Battery	n/a		Pedals that take a 9V battery only Some older Ibanez Some older MXR 'Boutique' pedals without DC jacks	White Adaptor	PS06		Clips directly on to the internal battery clip Buy as many as you need, one for each pedal Just plugs on to your existing daisy chain cable
