Diago Pedalboards




  • Diago Hardcase Pedalboards - Gigman, Showman & Tourman.

    Diago Pedalboards combine a lightweight and roadworthy pedal board and hard case, making them ideal for transporting your gear between home, gigs and practices. It makes set-up and take-down quick and easy, and is great for storing your pedals at home, so that they can be neatly hidden away from your wife/mum/significant other.

    Protection

    Nothing comes close to the protection a true hardcase offers. 1/2" eastern plywood and dense foam padding inside the lid keep your pedals protected from the rigors of the road - impact, scratching, dirt & moisture.

    Spotlight Image CLICK TO ZOOM


    Quality

    We wrap our 1/2" thick eastern plywood pedalboards in an attractive and super-durable polyweave skin, to keep the board looking great for a lifetime. We fit our boards with robust catches, high-quality hinges and steel corner strengtheners, and use a through-bolted amp-style handle for a really solid feel. Each board is assembled by hand in our factory and undergoes strict quality control for consistently fantastic pedalboards.

    Spotlight Image CLICK TO ZOOM


    Design

    The key to great design, is simplicity. Some boards come with bells and whistles such as a power splitter box (not even a power supply because you still need a wallwart - it's just a glorified daisy chain), an effects loop, or even a built in speaker. Why anyone would need any of these things built in is completely beyond us, so Diago Pedalboards do exactly what a good pedalboard should. Nothing more, nothing less.

    Spotlight Image CLICK TO ZOOM


    Flexibility

    Put whatever you like, wherever you like. All of our pedalboards are ideal for holding compact stomp effects, multi-effects, power supplies, wahs, volume pedals, channel switches, A/B boxes, and even DJ gear and synthesizers. In fact any combination of these, just so long as it all fits. See our Pedalboard Sizing Guide in the next tab for more information and check out the User Gallery below for some inspiration.

    Spotlight Image CLICK TO ZOOM

  • Specification & Sizing Guide

    Model Commuter PB08 Gigman PB02 Showman PB03 Tourman PB04
    Ref Colour
    Internal Width 490mm
    19¼"
    600mm
    23½"
    750mm
    29½"
    1020mm
    40"
    Internal Depth 260mm
    10¼"
    300mm
    11¾"
    350mm
    13¾"
    450mm
    17¾"
    Internal Height 80mm
    3.15"
    85mm
    3¼"
    100mm
    4"
    100mm
    4"
    Lip Height n/a 23mm
    7/8"
    23mm
    7/8"
    23mm
    7/8"
    How Many
    Boss Sized Pedals?
    8-10 10-15 15-20 up to 30!
    Ideal for Guitarists on the go Boss GT Series Line 6
    Pod XT Live
    Crazy Pedal Heads!
    Weight 1.8kg (including gigbag) 4kg 7kg 10kg
    Package Commuter Pedalboard, Padded Gigbag + 2m (6ft) premium pedalboard Velcro Gigman Pedalboard + 2m (6ft) premium pedalboard Velcro Showman Pedalboard + 3m (10ft) premium pedalboard Velcro Tourman Pedalboard + 4m (13ft) premium pedalboard Velcro
  • Which Pedalboard is right for me?

    We often get asked to recommend a board size to people, and it's a difficult question to answer. We're familiar with thousands of pedals, and always happy to give advice and recommendations, but in general it really comes down to the specifics of your pedals, patch cables, power supply and how you want to have them laid out and wired together.

    Do you want all your pedals to be in one row? What order do you want them in? What kind of power supply do you have? Even something as simple as the type of patch leads you use can make a massive difference to the amount of space you need. Have a look at the User Gallery below for a bit of inspiration, ultimately though, only you can decide what's best for you.

    There are two ways we recommend deciding; use Method 1 if you already have a board size in mind, and would like to know if your pedals will fit inside; use Method 2 if you have a particular layout in mind and would like to select a board to fit your pedals.

    Method 1: Will a XXXXman fit my pedals?

    • Find some tape (Sellotape, masking tape, gaffer tape etc.)
    • Mark out a rectangle on the floor, to the size of the pedal board in question
    • Attempt to fit your pedals within the area, to your liking. Remember to include all power and signal cabling
    • Decide whether it's OK or not?!

    Method 2: I have XXXX pedals; what size pedal board is best?

    • Lay your pedals out on the floor to your liking. Remember to include all power and signal cabling
    • Find some tape (Sellotape, masking tape, gaffer tape etc.)
    • Mark out a rectangle on the floor, around your gear.
    • Measure the rectangle size and compare it to the 3 pedal board sizes
    • Decide which pedal board suits you best - you may have to revise your layout a couple of times to make the optimal use of space.
  • Reviews

    From Mixdown, June 2010 (PDF)

    From Gear, June 2009 (PDF)

    From Play Music Pickup, April 2009 (PDF)

    From Guitar Buyer, December 2006 (PDF)
    guitar_buyer_review

  • Dimensions and Compatibility of Large Pedals

    Model Dimensions Will fit inside...
    Boss GT-3 487 x 222 x 97mm Showman & Tourman
    Boss GT-5 520 x 221 x 113mm Gigman, Showman & Tourman
    Boss GT-6 515 x 216 x 75mm Gigman, Showman & Tourman
    Boss GT-6B 515 x 216 x 75mm Gigman, Showman & Tourman
    Boss GT-8 515 x 216 x 75mm Gigman, Showman & Tourman
    Boss GT-10 542 x 272 x 77mm Gigman, Showman & Tourman
    Boss ME50 384 x 225 x 100mm Showman & Tourman
    Boss ME50B 384 x 225 x 100mm Showman & Tourman
    Boss PW-10 V-Wah 270 x 100 x 72mm Commuter, Gigman, Showman & Tourman
    Digitech GNX1 363 x 228 x 74mm Commuter, Gigman, Showman & Tourman
    Digitech GNX2 444 x 228 x 74mm Commuter, Gigman, Showman & Tourman
    Digitech GNX3 527 x 228 x 76mm Gigman, Showman & Tourman
    Digitech GNX4 546 x 228 x 83mm Gigman, Showman & Tourman
    Digitech Whammy 203 x 160 x 63mm Commuter, Gigman, Showman & Tourman
    Dunlop Crybaby 280 x 127 x 102mm Commuter, Gigman, Showman & Tourman
    Dunlop DVP-1 Volume Pedal 305 x 127 x 127mm Gigman, Showman & Tourman
    Electro Harmonix Small Clone 81 x 134 x 73mm Commuter, Gigman, Showman & Tourman
    Electro Harmonix Small Stone 81 x 134 x 73mm Commuter, Gigman, Showman & Tourman
    Fractal Audio MFC-101 400 x 254 x 76mm Commuter, Showman & Tourman
    Korg Toneworks AX1500G 420 x 188 x 65mm Commuter, Gigman, Showman & Tourman
    Korg Toneworks AX3000G 500 x 241 x 72mm Gigman, Showman & Tourman
    Line 6 Floor POD 340 x 229 x 44.45mm Commuter, Gigman, Showman & Tourman
    Line 6 Floor POD Plus 340 x 273 x 57mm Commuter, Gigman, Showman & Tourman
    Line 6 HD300 465 x 243 x 74mm Commuter, Gigman, Showman & Tourman
    Line 6 HD400 516 x 243 x 66mm Gigman, Showman & Tourman
    Line 6 HD500 546 x 261 x 74mm Gigman, Showman & Tourman
    Line 6 M9 267 x 178 x 76mm Commuter, Gigman, Showman & Tourman
    Line 6 M13 394 x 305 x 89mm Gigman, Showman & Tourman
    Line 6 POD X3 Live 546 x 254 x 121mm Showman & Tourman
    Line 6 POD XT Live 514 x 285 x 82mm Gigman, Showman & Tourman
    Line 6 Bass POD XT Live 514 x 285 x 82mm Gigman, Showman & Tourman
    Line 6 Stomp Box Modelers (DL4, DM4, FM4 & MM4) 210 x 152 x 57mm Commuter, Gigman, Showman & Tourman
    TC Electronic G-System 513 x 266 x 103mm None unfortunately
    Vox Tonelab 319 x 213 x 79mm Commuter, Gigman, Showman & Tourman
    Vox Tonelab SE 710 x 249 x 76mm Showman & Tourman
    Zoom GFX3 323 x 175 x 70mm Commuter, Gigman, Showman & Tourman
    Zoom GFX5 390 x 220 x 75mm Commuter, Gigman, Showman & Tourman
    Zoom GFX8 455 x 203 x 80mm Commuter, Gigman, Showman & Tourman
  • Alternatives

    We don't pretend that Diago Pedalboards are the only solutions available, but we firmly believe that they are the best solution for most people. We've compiled a list of many of the popular alternatives, along with their advantages and disadvantages compared to our products, allowing your to make your own informed decision: here.

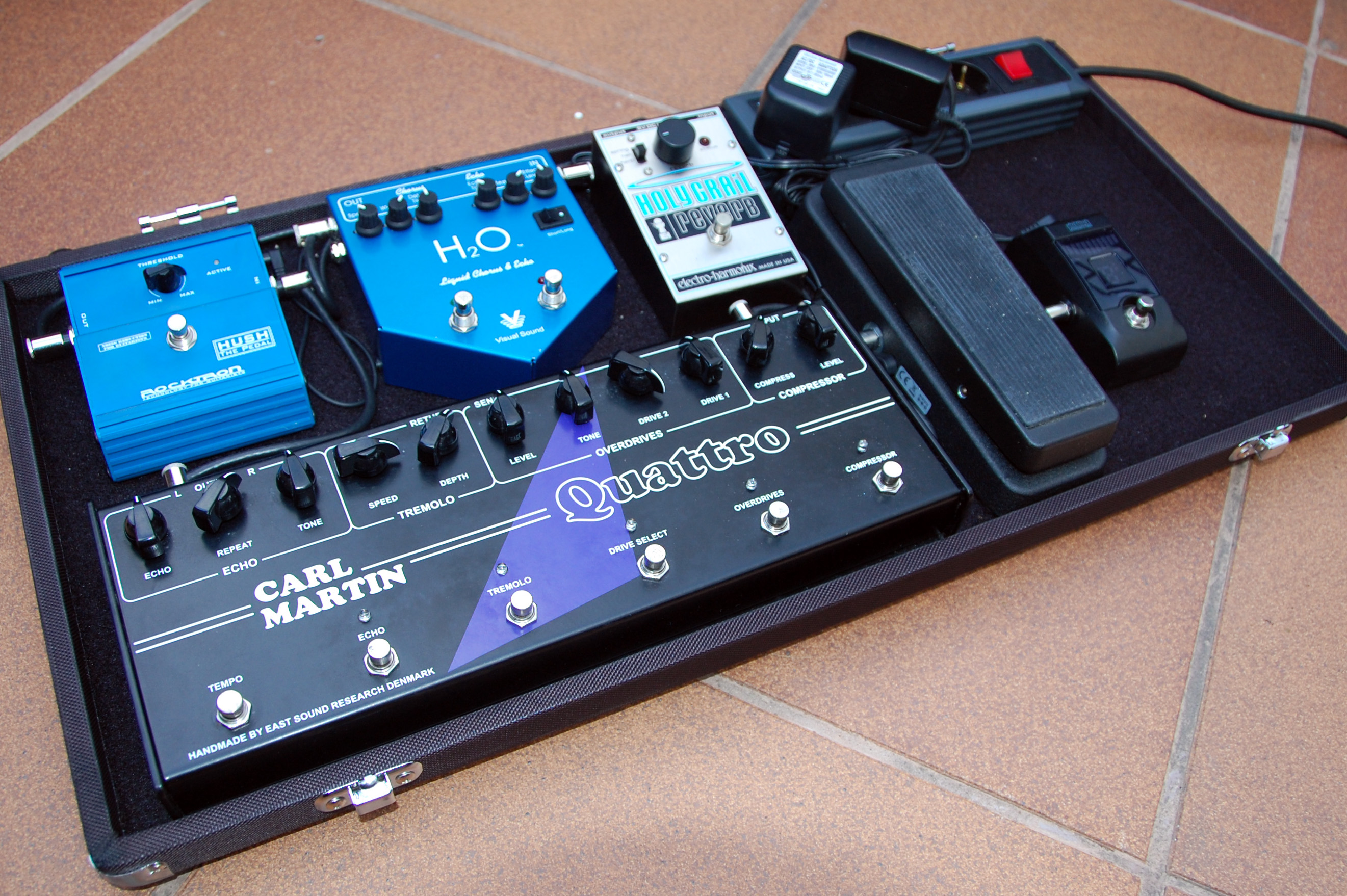

User Gallery

For some ideas, inspiration, or just to geek out on what everybody else is running, check out the Diago User Gallery below, and submit your rig!
